Bearingheater Dimension

Home > Product > Bearingheater Dimension

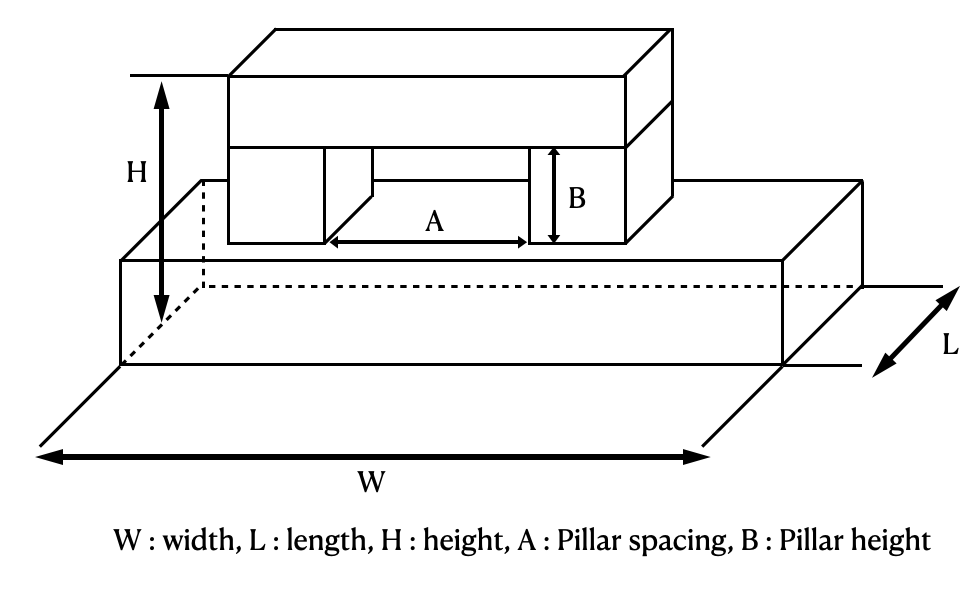

  1. Bearing heater drawing 베어링도면
  2. Bearing heater specification
    Model name BHW-
    NDM    		 BHW-
    SMS    		 BHW-
    LDM    		 BHW-
    XLDM    		 BHW-
    XLDS
    Bearing inner
    diameter(mm)    		 ∅15~
    ∅200    		 ∅15~
    ∅250    		 ∅20~
    ∅300    		 ∅30~
    ∅400    		 ∅50~
    ∅600
    Width*Length*Height(A,B)mm 380*155*295
    (88,95)    		 600*225*275
    (130,120)    		 450*225*380
    (120,120)    		 600*250*420
    (180,180)    		 850*540*820
    (250,300)
    Weight(Kg) 17.5 23 35 75 100
    Current/
    Voltage/
    KVA    		 15/220/3.5 20/220/4.4 25/220/4.5 35/220/8.0 65/220/14.0
    Function Digital, Timer,Overheating
    prevention, Demagnetization    		 -> with
    carrier
    Cross bar
    ∅15    		 o o
    Cross bar
    ∅20    		 o o o
    Cross bar
    ∅30    		 o o o o
    Cross bar
    ∅40    		 o o o
    Cross bar
    ∅50    		 o o o o
    Cross bar
    ∅60    		 o
    Cross bar
    ∅65    		 o o o
    Cross bar
    ∅80    		 o o
    Cross bar
    ∅85    		 o
    Cross bar
    ∅100    		 o
    Cross bar
    ∅115    		 o o

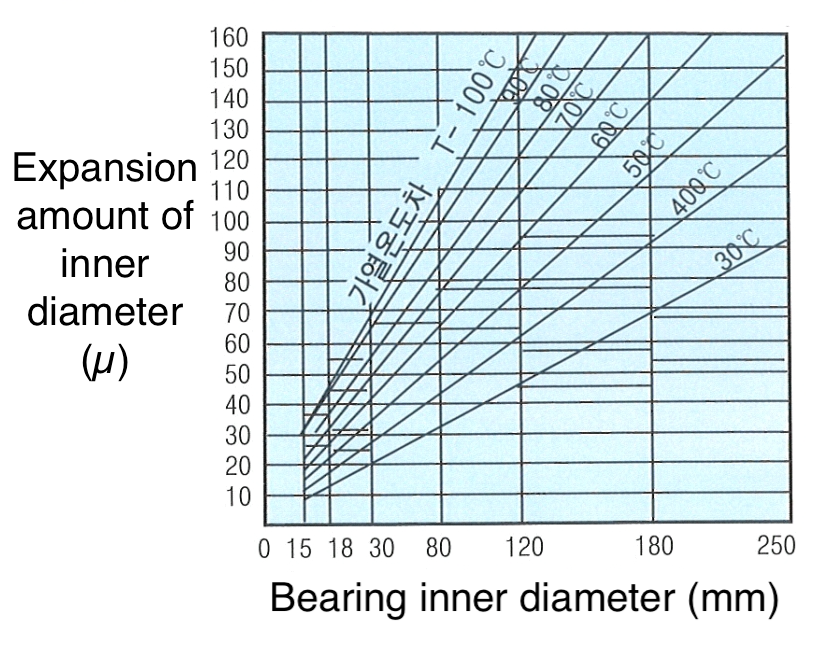

  3. Table of expansion coefficient of inner ring diameter according to temperature change 내륜경 팽창 계수 표

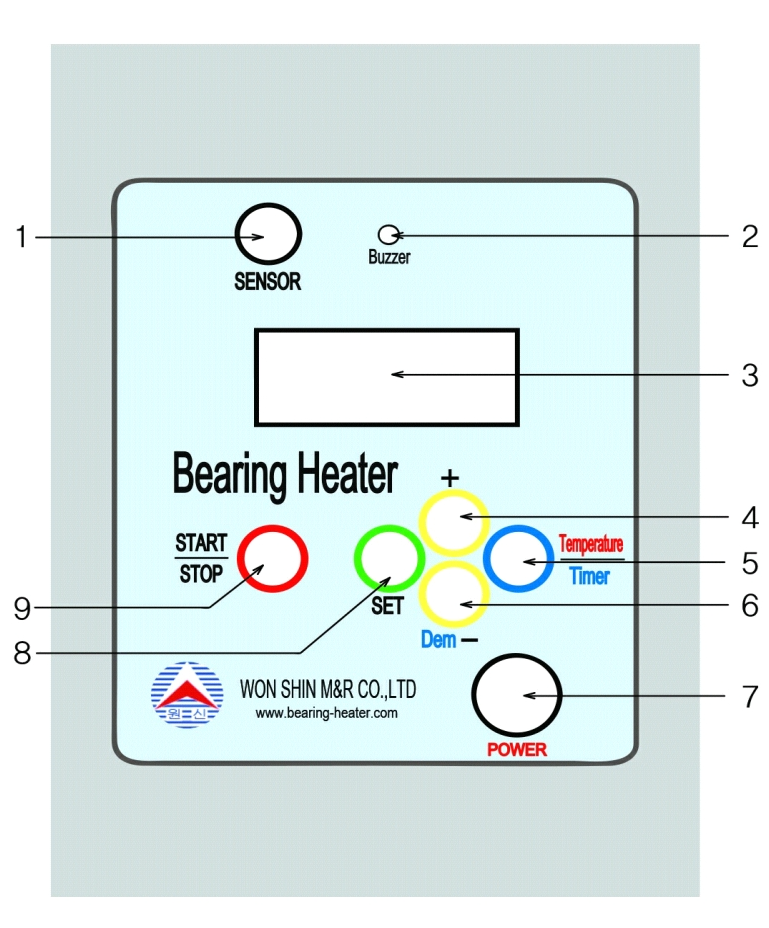

  4. Name of each part 기계 명칭
    • Temperature sensor connection
    • Buzzer
    • Display
    • Increase setting value
    • Mode change
    • Decrease setting value
    • Power on, off
    • Adjusting and saving set values
    • Heating start, end
  5. Installation mode
    온도모드 수평 Install the temperature mode bearing horizontally.

    (With temperature sensor bearing inner ring)

    온도모드 걸어서 Install the temperature mode bearing by hanging it.

    (With temperature sensor bearing inner ring)

    타이머모드 수평 Install the timer mode bearing horizontally.

    (Not attached to the temperature sensor bearing)

    타이머모드 걸어서 Install the timer mode bearing by hanging it.

    (Not attached to the temperature sensor bearing)

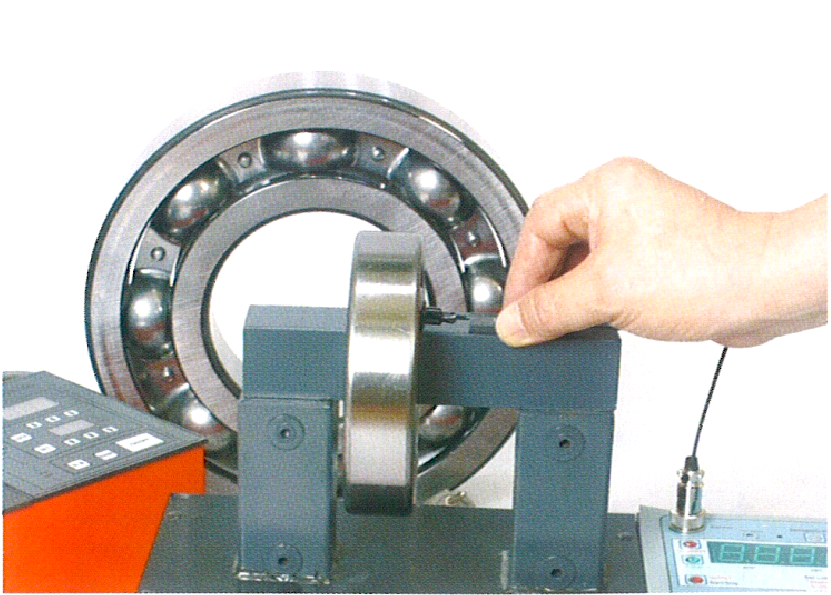

  6. How to change the magnet to the support of the sensor 사용설명

    ※ Hold the magnet part of the temperature sensor line as above and attach the cross bar to the top. This turns the magnet into a support for the sensor.
